Control Panel Design
2026-02-02
Designing a control panel that meets IEC 60204-1 standards isn't just about following rules; it's about ensuring safety and longevity. A professional design balances regulatory requirements with real-world accessibility.
Here are the core components every robust industrial control panel includes:
🔧 Structural & Safety- Enclosure (NEMA/IP rated)
- Main Disconnect Switch
- Emergency Stop
- DIN Rails & Back Panel
- Cable Management & Glands
- Circuit Breakers (Main & Branch)
- Surge Protectors
- Transformers (Control/Power)
- Motor Protection (Overload Relays)
- Fuses
- PLC (CPU, I/O Modules, Power Supply)
- HMI (Touchscreen/Display)
- Contactors & Control Relays
- VFDs / Soft Starters
- Indicator Lights (Power, Run, Fault)
- Push Buttons & Selector Switches
- Meters (Voltage, Current)
- Terminal Blocks (Power, Control, Grounding)
- Labeled & Color-Coded Wiring
- Communication Ports (Ethernet, Fieldbus)
- Complete Documentation (Schematics, Layout, BOM)
A well-designed panel isn't just a collection of parts—it's a logically arranged, clearly labeled, and safely integrated system built for reliability and easy maintenance.

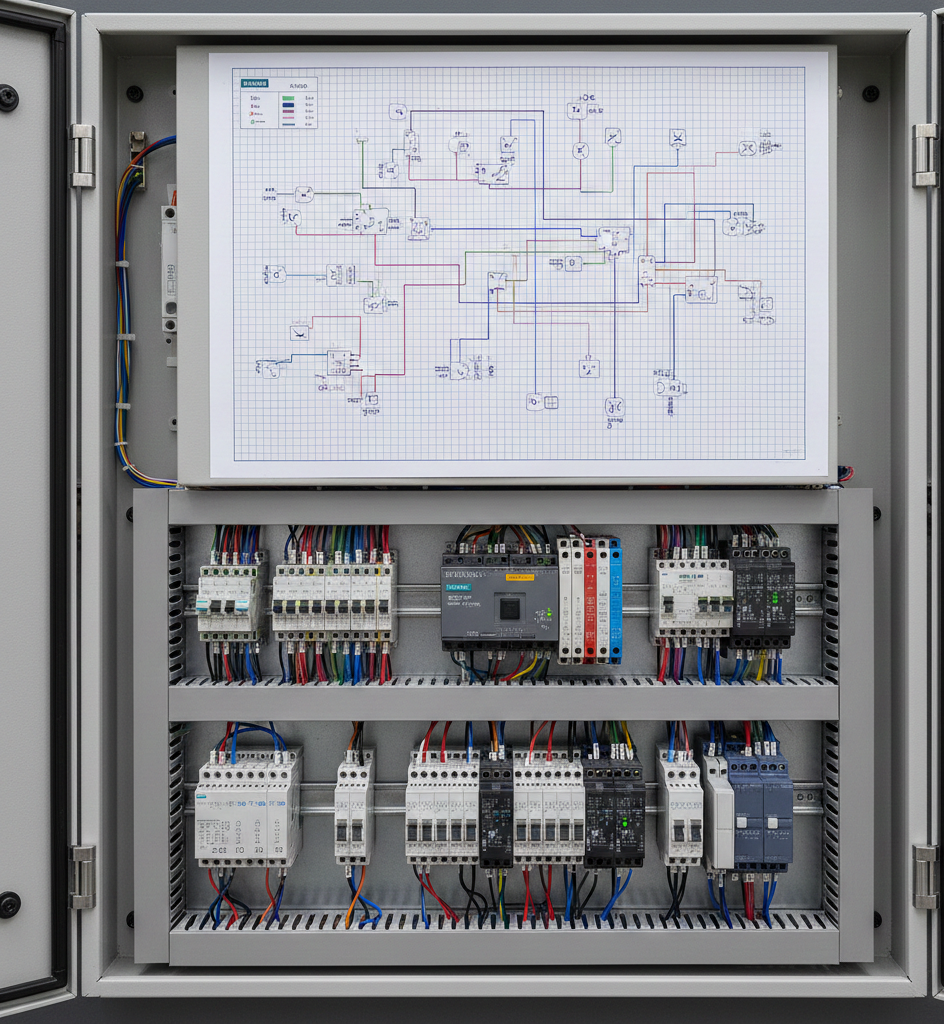

Control Panel Example
